Monitoring Systems
Monitoring Systems
Keep track of your vessel's critical systems from one place. ATM Engineering offers three monitoring platforms: Rhodium AMCS, NaviOp, and MARS7000.
Request a Consultation
Monitoring
Rhodium AMCS

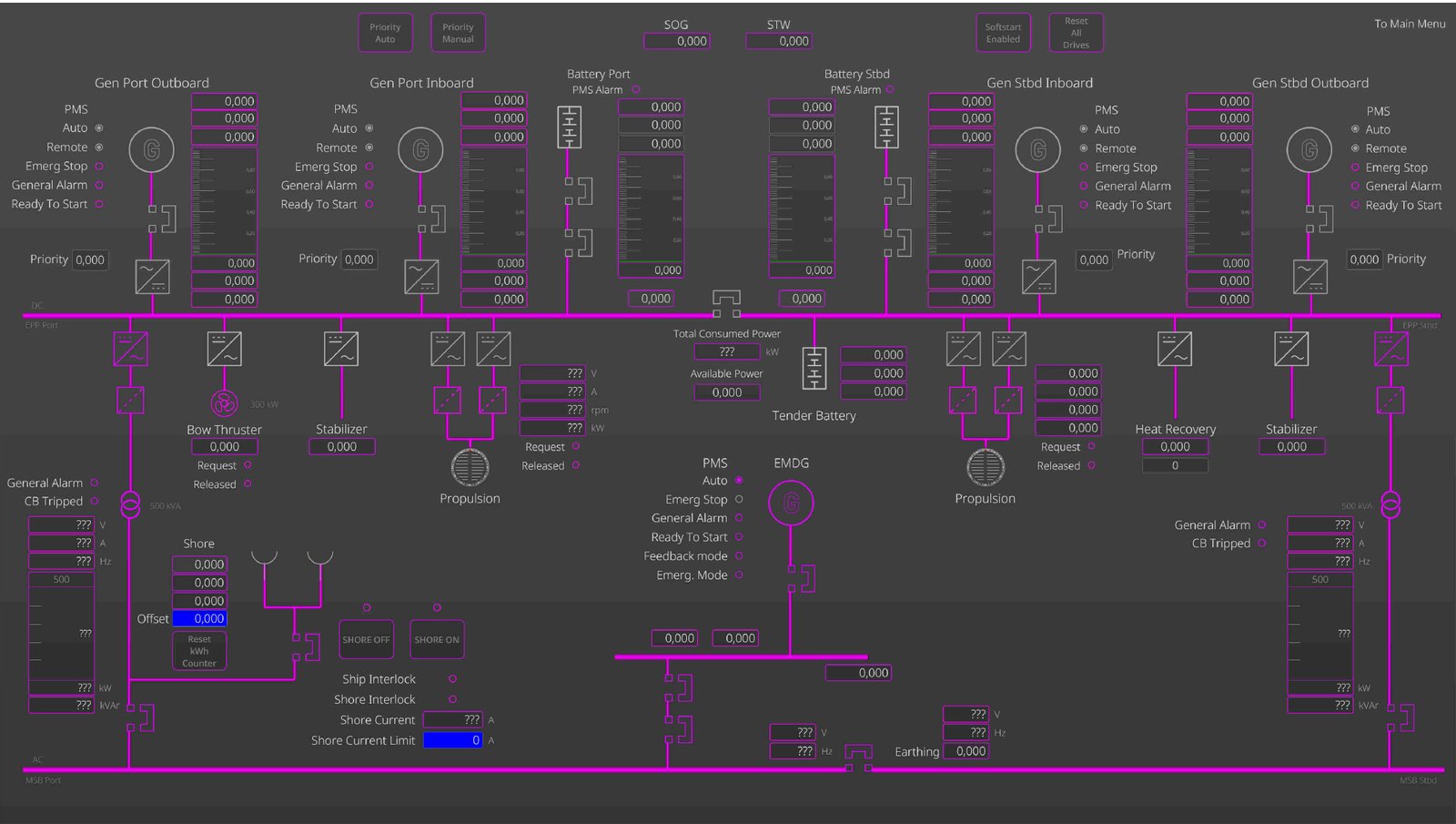

The Rhodium AMCS brings the vessel's systems onto one set of mimic screens, from the main switchboard and generators to fuel, fresh water, and sewage. Operators see the state of each system at a glance and get alarms with clear severity levels.
- Power management with Auto and Remote control and load priorities
- Mimic screens for generators, batteries, propulsion, and the emergency generator
- Fuel, fresh water, sewage, and heat recovery system views
- Caution, warning, slowdown, and shutdown alarm levels
- Fire sensor, heat and gas detector, and fire damper status
- Running hours and power quality (THD) monitoring
Monitoring
NaviOp
NaviOp is a vessel-wide monitoring and control system. It brings selected B&G systems and sensors together so engine status, performance, fuel and tank levels, and DC and AC power management appear on one set of clear numeric and graphical displays.
- Engine status and performance monitoring
- Fuel and tank level displays
- Energy management for DC and AC power systems
- Pages organized by function: switching, propulsion, and tankage
- One interface for all connected vessel services
- Built around selected B&G systems and sensors
Monitoring
MARS7000

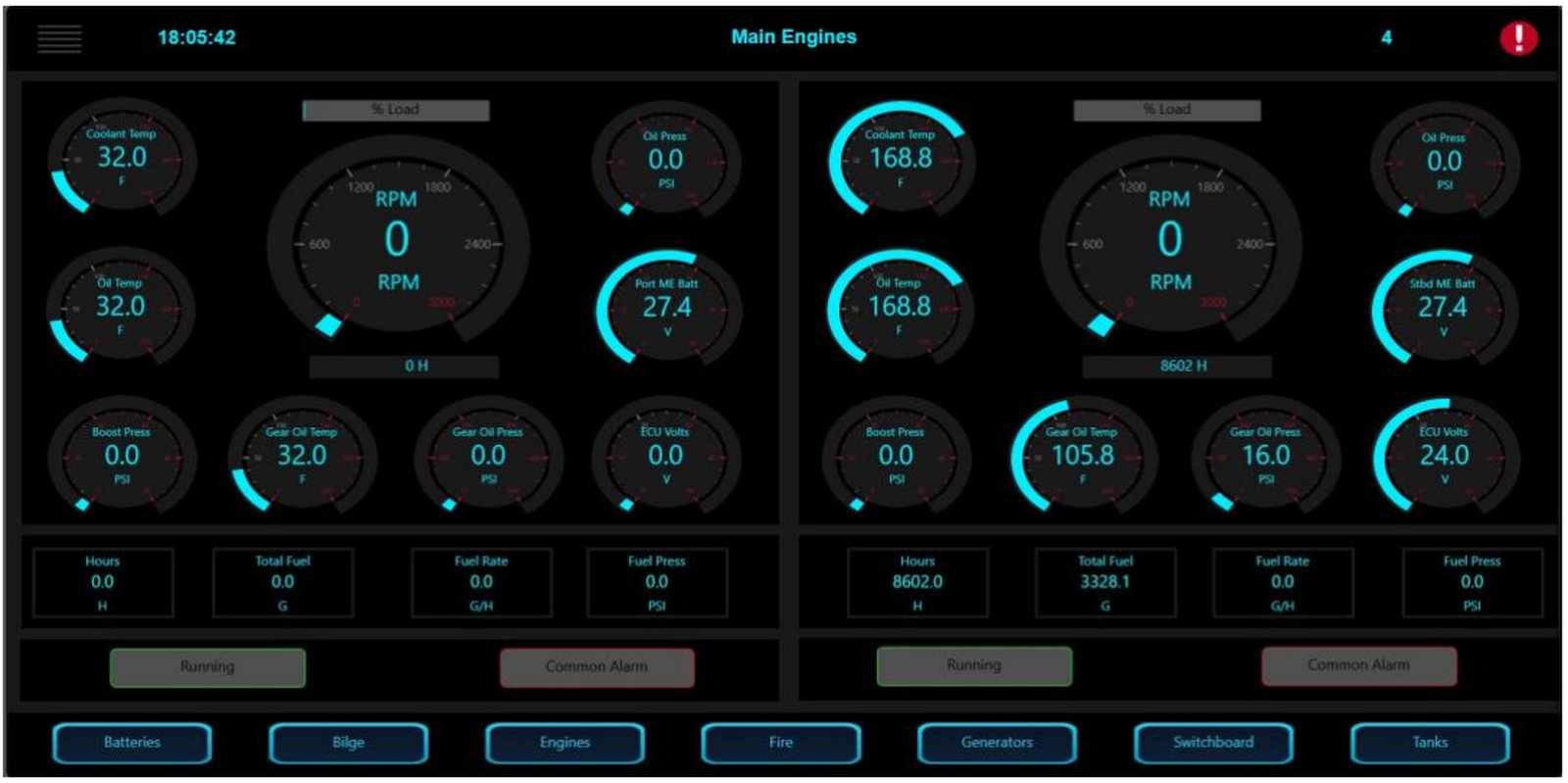

MARS7000 is a custom vessel monitoring and automation system built on industrial PLC hardware, with a web-based display that needs no special software to view system status. ATM Engineering sells and installs this system for vessels across South Florida.
- Main engine and generator monitoring
- Switchboard and battery status
- Tank levels and bilge monitoring
- Fire detection and door/hatch status
- Valve position monitoring
- Secure remote access from any networked display
Manufactured by 7C Enterprises. Contact us for specifications and to find out what the system can monitor on your vessel.
